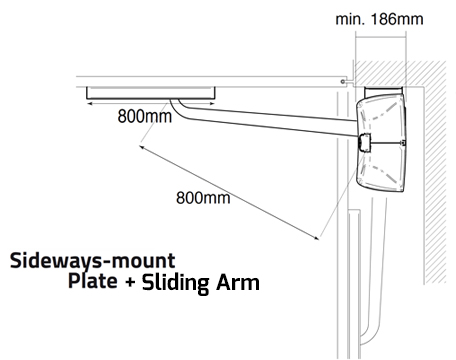

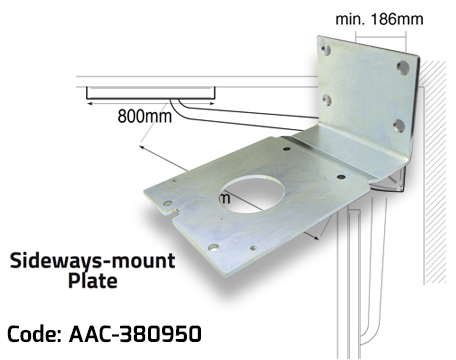

LIVI 502 motors are strong and reliable and are ideal for installations without a lot of room thanks to the internal limit switches (optional) inside and the optional side-mount base lets positions the motor 90-degrees.
Voltage
(VAC)
24V
Unit Weight
(kg)
13.2
Torque
(Nm)
180
Duty Cycle
(%)
35
Working Temperature
(°C)
-20 to 50
Openings per hour
35
Opening Time to 90°
(s)
10
DC Voltage
(VDC)
24
