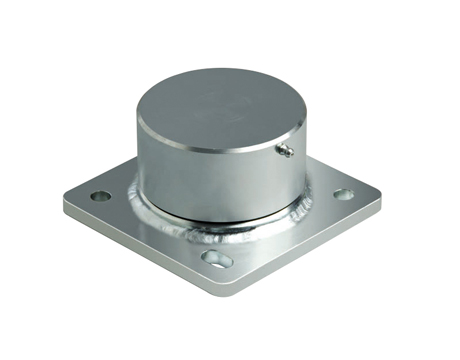

These heavy duty bearing hinges handle large side loads, making them ideal for large gates and gates with automation.

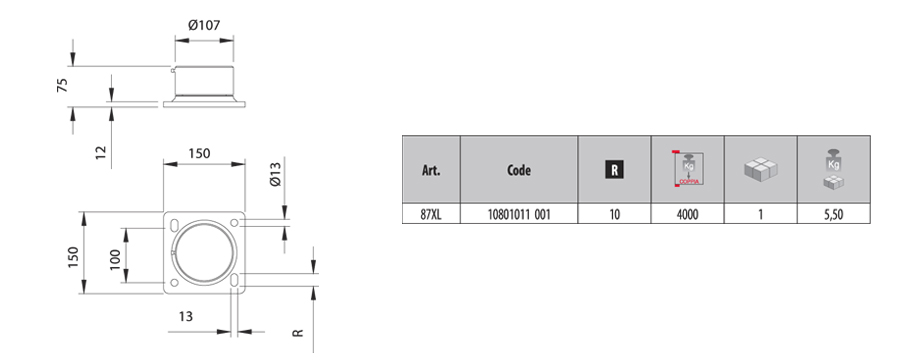

Bolts directly to concrete. 110mm diameter bearing surface. Use with Comunello 85XL upper hinges for optimum performance.
Suits heavy automated Swing gates
High quality thrust bearing
Thrust Bearing
A tapered bottom bearing allows for high side and vertical loads making it ideal for heavy swing gates and automated swing gates
Grease Nipple
Allows for easy lubrication of the part
Material
Steel
Coating
Zinc Plated
Unit Weight
(kg)
5.5
